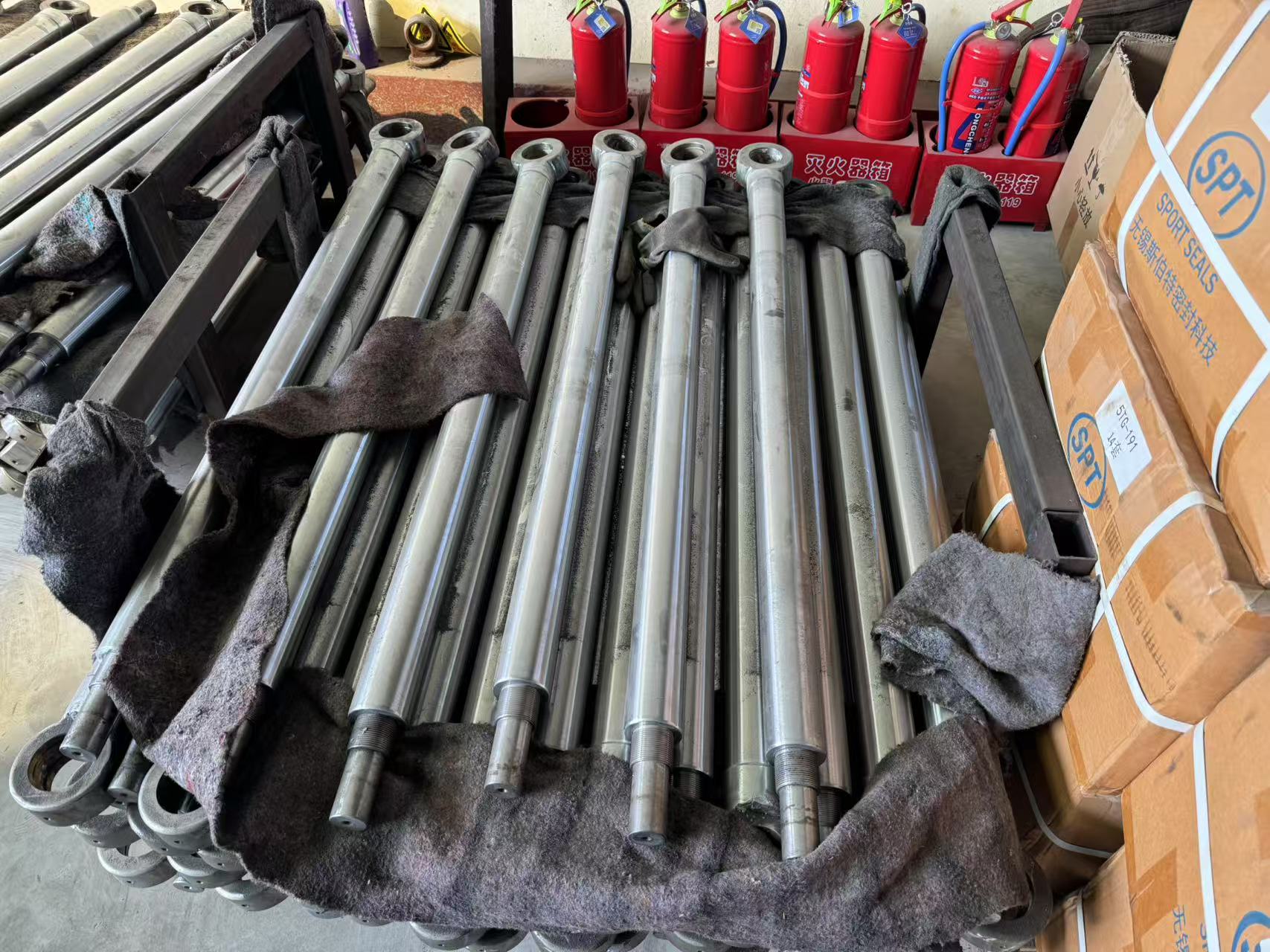

Precision Steel Shaft
This precision steel shaft features a hard chrome plated surface, delivering excellent corrosion resistance, superior mechanical strength, and a high-gloss finish. It is widely used in hydraulic systems, automation equipment, and mechanical motion components.
Features
- Material: High-quality carbon steel (e.g., CK45, 20MnV6, ST52)
- Surface Treatment: Hard chrome plating
- Chrome Layer Thickness: 20–30μm, uniform and dense
- Surface Hardness: ≥HRC 60 for excellent wear resistance
- Surface Roughness: Below Ra 0.2μm (mirror finish)
- Straightness Tolerance: 0.15/1000mm
- Length Range: Available from 1 meter to 8 meters
- Diameter Tolerance: f7, f8 (customizable)
Order & Shipping Terms
- Minimum Order Quantity: 1 Ton
- Price: Negotiable
- Delivery Time: ~30 Days
- Payment Terms: L/C or T/T
- Supply Ability: 30 Tons per day
- Packaging: Anti-rust oil, paper wrapping, plastic caps on both ends
Applications
- Hydraulic cylinder piston rods
- Automation and drive systems
- Linear motion components
- Precision machine tools
- Industrial robots and conveyors
Detailed Description
1.CHEMICAL COMPOSITION
| Material | C% | Mn% | Si% | S% | P% | V% | Cr% |
| Ck45 | 0.42-0.50 | 0.50-0.80 | 0.04 | 0.035 | 0.035 | ||
| ST52 | 0.22 | 1.6 | 0.55 | 0.035 | 0.04 | ||
| 20MnV6 | 0.16-0.22 | 1.30-1.70 | 0.10-0.50 | 0.035 | 0.035 | 0.10-0.20 | |
| 42CrMo4 | 0.38-0.45 | 0.60-0.90 | 0.15-0.40 | 0.03 | 0.03 | 0.90-1.20 | |
| 40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | 0.80-1.10 |
2.MECHANCIAL PROPERTIES
| Material | T.S N/MM2 | Y.S N/MM2 | E%(MIN) | CHARPY | CONDITION |
| CK45 | 610 | 355 | 15 | >41J | NORMALIZE |
| CK45 | 800 | 630 | 20 | >41J | Q + T |
| ST52 | 500 | 355 | 22 | NORMALIZE | |
| 20MnV6 | 750 | 590 | 12 | >40J | NORMALIZE |
| 42CrMo4 | 980 | 850 | 14 | >47J | Q + T |
| 40Cr | 1000 | 800 | 10 | Q + T |
Customization Options
We offer flexible customization for material, length, tolerance grade, and surface finish to meet specific application requirements—available for both small and large volume orders.
